Series 800/M > 809/M

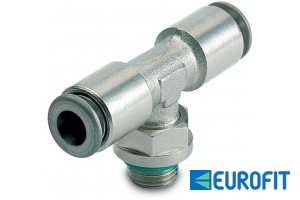

Central rotary male tee (with O-Ring)
Central rotary male tee (with O-Ring)

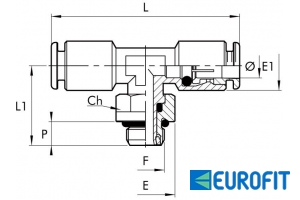

| Cod. | Ref. | Ø | F | Ch | E | E1 | L | L1 | P | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2009141 | 809/M | 4 | 1/8 | 13 | 15 | 10 | 41.5 | 21 | 6 | 10 |
| E2009147 | 809/M | 6 | 1/8 | 13 | 15 | 12.5 | 47.5 | 21 | 6 | 10 |
| E2009148 | 809/M | 6 | 1/4 | 16 | 18 | 12.5 | 50.5 | 25 | 8 | 10 |
| E2009150 | 809/M | 8 | 1/8 | 13 | 15 | 14 | 52 | 22.5 | 6 | 10 |
| E2009151 | 809/M | 8 | 1/4 | 16 | 18 | 14 | 52 | 25 | 8 | 10 |
| E2009152 | 809/M | 8 | 3/8 | 19 | 22 | 14 | 56 | 30.5 | 9 | 10 |
| E2009153 | 809/M | 10 | 1/4 | 16 | 18 | 16.5 | 60.5 | 27 | 8 | 10 |
| E2009154 | 809/M | 10 | 3/8 | 19 | 22 | 16.5 | 60.5 | 30.5 | 9 | 10 |
| E2009157 | 809/M | 12 | 3/8 | 19 | 22 | 19 | 69 | 31.5 | 9 | 10 |
| E2009158 | 809/M | 12 | 1/2 | 22 | 26 | 19 | 69 | 32 | 11 | 10 |
| E2009160 | 809/M | 14 | 1/2 | 22 | 26 | 21.5 | 75 | 35 | 11 | 10 |
