Series 800/W > 813/W

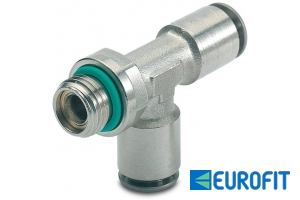

Side rotary male tee (with O-Ring)
Side rotary male tee (with O-Ring)

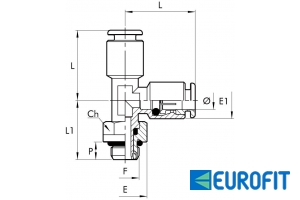

| Cod. | Cod. NSF | Ref. | Ø | F | Ch | E | E1 | L | L1 | P | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E2013002W | 2F38002 | 813/W | 4 | 1/8 | 13 | 15 | 9.5 | 22.5 | 21 | 6 | 10 |
| E2013007W | 2F38008 | 813/W | 6 | 1/8 | 13 | 15 | 12.5 | 24.5 | 21 | 6 | 10 |
| E2013008W | 2F38009 | 813/W | 6 | 1/4 | 16 | 18 | 12.5 | 26 | 25 | 8 | 10 |
| E2013009W | 2F38010 | 813/W | 8 | 1/8 | 13 | 15 | 14.5 | 27.5 | 22.5 | 6 | 10 |
| E2013010W | 2F38011 | 813/W | 8 | 1/4 | 16 | 18 | 14.5 | 27.5 | 25 | 8 | 10 |
| E2013012W | 2F38013 | 813/W | 10 | 1/4 | 16 | 18 | 17 | 31.5 | 27 | 8 | 10 |
| E2013013W | 2F38014 | 813/W | 10 | 3/8 | 19 | 22 | 17 | 31.5 | 30.5 | 9 | 10 |
