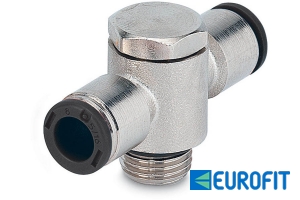

Series 700 > 755
Male stem, double adjustable ring
Male stem, double adjustable ring

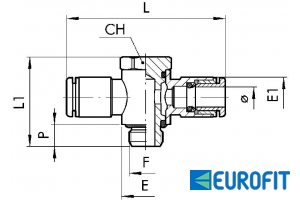

| Cod. | Ref. | Ø | F | Ch | E | E1 | L | L1 | P | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2L55001 | 755 | 4 | M5 | 9 | 9.5 | 9.5 | 40.4 | 18.7 | 4.5 | 10 |
| E2L55002 | 755 | 4 | 1/8 | 13 | 14 | 9.5 | 42.6 | 25.3 | 6 | 10 |
| E2L55007 | 755 | 6 | M5 | 9 | 9.5 | 11.3 | 47 | 18.7 | 4.5 | 10 |
| E2L55008 | 755 | 6 | 1/8 | 13 | 14 | 11.5 | 46 | 25.3 | 6 | 10 |
| E2L55009 | 755 | 6 | 1/4 | 16 | 18 | 11.5 | 49 | 29.2 | 8 | 10 |
| E2L55010 | 755 | 8 | 1/8 | 13 | 14 | 13.8 | 49.6 | 25.3 | 6 | 10 |
| E2L55011 | 755 | 8 | 1/4 | 16 | 18 | 13.8 | 53 | 29.2 | 8 | 10 |
| E2L55012 | 755 | 8 | 3/8 | 20 | 21 | 13.8 | 57 | 35.4 | 9 | 10 |
| E2L55013 | 755 | 10 | 1/4 | 16 | 18 | 16.5 | 62.8 | 29.2 | 8 | 10 |
| E2L55014 | 755 | 10 | 3/8 | 20 | 21 | 16 | 65.6 | 35.4 | 9 | 10 |
| E2L55015 | 755 | 12 | 1/4 | 16 | 18 | 19.5 | 66 | 29.2 | 8 | 10 |
| E2L55016 | 755 | 12 | 3/8 | 20 | 21 | 19.5 | 70.6 | 35.4 | 9 | 10 |
| E2L55017 | 755 | 12 | 1/2 | 25 | 26 | 19.5 | 74 | 40 | 11 | 10 |
