Series 700 > 706/T

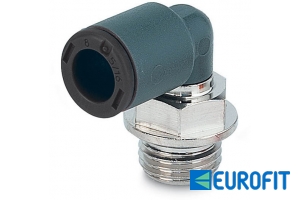

Rotary male elbow (with O-Ring)
Rotary male elbow (with O-Ring)

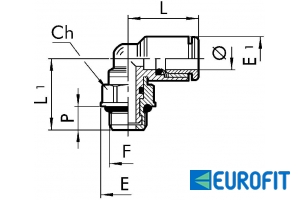

| Cod. | Ref. | Ø | F | Ch | P | L | L1 | E | E1 | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2L34001 | 706/T | 4 | M5 | 8 | 4 | 16.4 | 15.2 | 9 | 9.2 | 10 |
| E2L34000 | 706/T | 4 | M7 | 8 | 5 | 16.4 | 16.2 | 9.8 | 9.2 | 10 |
| E2L34002 | 706/T | 4 | 1/8 | 12 | 6 | 16.4 | 17.2 | 14 | 9.2 | 10 |
| E2L34003 | 706/T | 4 | 1/4 | 14 | 8 | 16.4 | 20.1 | 18 | 9.2 | 10 |
| E2L34006 | 706/T | 6 | M5 | 8 | 4 | 18 | 16.3 | 9 | 11.3 | 10 |
| E2L34005 | 706/T | 6 | M7 | 9 | 5 | 19 | 17.5 | 9.9 | 11.3 | 10 |
| E2L34007 | 706/T | 6 | 1/8 | 12 | 6 | 19 | 18.3 | 14 | 11.3 | 10 |
| E2L34008 | 706/T | 6 | 1/4 | 14 | 8 | 19 | 21.2 | 18 | 11.3 | 10 |
| E2L34009 | 706/T | 8 | 1/8 | 12 | 6 | 20.2 | 19.5 | 14 | 13.8 | 10 |
| E2L34010 | 706/T | 8 | 1/4 | 14 | 8 | 20.2 | 22.4 | 18 | 13.8 | 10 |
| E2L34011 | 706/T | 8 | 3/8 | 17 | 9 | 20.2 | 24.4 | 22 | 13.8 | 10 |
| E2L34013 | 706/T | 10 | 1/4 | 14 | 8 | 23.3 | 23.5 | 18 | 16 | 10 |
| E2L34014 | 706/T | 10 | 3/8 | 17 | 9 | 23.3 | 25.6 | 22 | 16 | 10 |
| E2L34016 | 706/T | 12 | 3/8 | 17 | 9 | 25.2 | 27.3 | 22 | 19.5 | 10 |
| E2L34017 | 706/T | 12 | 1/2 | 19 | 11 | 25.2 | 30.3 | 26 | 19.5 | 10 |
