Series 700 > 700

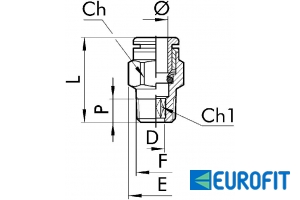

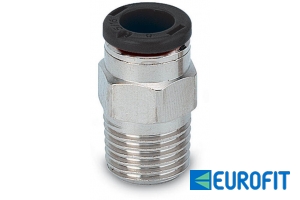

Conical male straight coupling
Conical male straight coupling
| Cod. | Ref. | Ø | F | Ch | Ch1 | D | E | L | P | Conf |
|---|---|---|---|---|---|---|---|---|---|---|
| E2L01C02 | 700 | 4 | 1/8 | 10 | 3 | 3.1 | 11.3 | 18.5 | 6.2 | 10 |
| E2L01C07 | 700 | 6 | 1/8 | 12 | 4 | 4.1 | 13.5 | 22.5 | 6.2 | 10 |
| E2L01C08 | 700 | 6 | 1/4 | 12 | 4 | 4.1 | 13.2 | 22.3 | 8.5 | 10 |
| E2000118 | 700 | 6 | M12x1 con. | 12 | 4 | 4.1 | 13.2 | 23.5 | 9 | 10 |
| E2000119 | 700 | 6 | M12x1.25 con. | 12 | 4 | 4.1 | 13.2 | 23.5 | 9 | 10 |
| E2L01C09 | 700 | 8 | 1/8 | 13 | 6 | 6.2 | 14.3 | 26 | 6.2 | 10 |
| E2L01C10 | 700 | 8 | 1/4 | 14 | 6 | 6.2 | 15.8 | 25.5 | 8.5 | 10 |
| E2L01C11 | 700 | 8 | 3/8 | 14 | 6 | 6.2 | 16.6 | 24.9 | 9 | 10 |
| E2L01C12 | 700 | 10 | 1/4 | 16 | 7 | 7.2 | 17.7 | 28.9 | 8.5 | 10 |
| E2L01C13 | 700 | 10 | 3/8 | 16 | 8 | 8.2 | 17.7 | 26 | 9 | 10 |
| E2L01C15 | 700 | 12 | 3/8 | 19 | 10 | 10.2 | 21 | 28.5 | 9 | 10 |
| E2L01C16 | 700 | 12 | 1/2 | 19 | 10 | 10.2 | 21.3 | 26.6 | 11 | 10 |
