Series 700 > 707/T

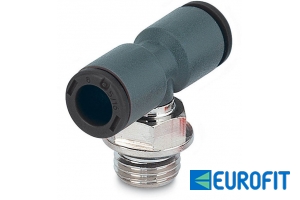

Central rotary male tee (with O-Ring)
Central rotary male tee (with O-Ring)
| Cod. | Ref. | Ø | F | Ch | P | L | L1 | E | E1 | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2L35001 | 707/T | 4 | M5 | 8 | 4 | 32.8 | 15.2 | 9 | 9.2 | 10 |
| E2L35000 | 707/T | 4 | M7 | 8 | 5 | 32.8 | 16.2 | 9.8 | 9.2 | 10 |
| E2L35002 | 707/T | 4 | 1/8 | 12 | 6 | 32.8 | 17.2 | 14 | 9.2 | 10 |
| E2L35003 | 707/T | 4 | 1/4 | 14 | 8 | 32.8 | 20.1 | 18 | 9.2 | 10 |
| E2L35006 | 707/T | 6 | M5 | 8 | 4 | 36 | 16.3 | 9 | 11.3 | 10 |
| E2L35007 | 707/T | 6 | 1/8 | 12 | 6 | 38 | 18.3 | 14 | 11.3 | 10 |
| E2L35008 | 707/T | 6 | 1/4 | 14 | 8 | 38 | 21.2 | 18 | 11.3 | 10 |
| E2L35009 | 707/T | 8 | 1/8 | 12 | 6 | 40.4 | 19.5 | 14 | 13.8 | 10 |
| E2L35010 | 707/T | 8 | 1/4 | 14 | 8 | 40.4 | 22.4 | 18 | 13.8 | 10 |
| E2L35011 | 707/T | 8 | 3/8 | 17 | 9 | 40.4 | 24.4 | 22 | 13.8 | 10 |
| E2L35013 | 707/T | 10 | 1/4 | 14 | 8 | 46.6 | 23.5 | 18 | 16 | 10 |
| E2L35014 | 707/T | 10 | 3/8 | 17 | 9 | 46.6 | 25.6 | 22 | 16 | 10 |
| E2L35016 | 707/T | 12 | 3/8 | 17 | 9 | 50.4 | 27.3 | 22 | 19.5 | 10 |
| E2L35017 | 707/T | 12 | 1/2 | 19 | 11 | 50.4 | 30.3 | 26 | 19.5 | 10 |
