Series 700 > 729/T

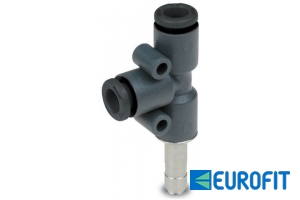

Double lateral elbow
Double lateral elbow

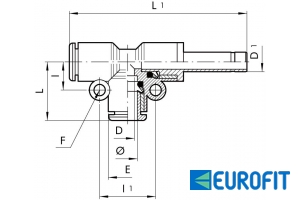

| Cod. | Ref. | Ø | L | L1 | I | I1 | E | D | D1 | F | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E2L29001 | 729/T | 4 | 16.7 | 47.4 | 7.2 | 14.4 | 9.2 | 2.5 | 4 | 3.3 | 10 |
| E2L29003 | 729/T | 6 | 19 | 52.5 | 8.2 | 16.4 | 11.3 | 4.2 | 6 | 3.3 | 10 |
| E2L29004 | 729/T | 8 | 21.4 | 58.4 | 9.6 | 19.2 | 13.8 | 6.2 | 8 | 3.3 | 10 |
| E2L29005 | 729/T | 10 | 24.1 | 68.2 | 10.9 | 21.8 | 16 | 8.5 | 10 | 3.3 | 10 |
| E2L29006 | 729/T | 12 | 25.8 | 74.1 | 12.5 | 25 | 19.5 | 10.5 | 12 | 3.3 | 10 |
