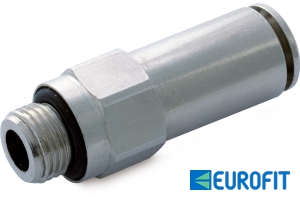

Straight connection with non return valve

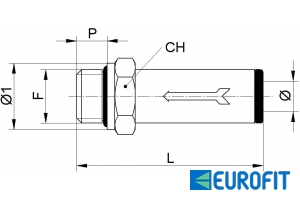

Cod. | Ref. | Ø | F | Ø 1 | L | CH | Conf. |
---|---|---|---|---|---|---|---|
E9003010 | 583 | 4 | M5 | 8 | 35.0 | 9 | 10 |
E9003011 | 583 | 4 | 1/8 | 13 | 28.5 | 11 | 10 |
E9003012 | 583 | 6 | 1/8 | 13 | 35.0 | 13 | 10 |
E9003013 | 583 | 6 | 1/4 | 16 | 37.0 | 14 | 10 |
E9003014 | 583 | 8 | 1/8 | 13 | 36.0 | 15 | 10 |
E9003015 | 583 | 8 | 1/4 | 16 | 37.0 | 16 | 10 |
E9003016 | 583 | 10 | 1/4 | 16 | 40.0 | 18 | 10 |
E9003017 | 583 | 10 | 3/8 | 20 | 40.0 | 18 | 10 |
E9003018 | 583 | 12 | 1/2 | 25 | 44.0 | 22 | 10 |
E90030109 | 583 | 14 | 1/2 | 25 | 50.5 | 25 | 10 |
