Series 400 > 458

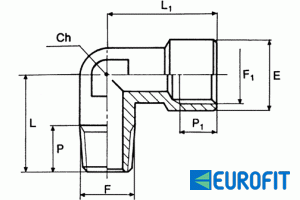

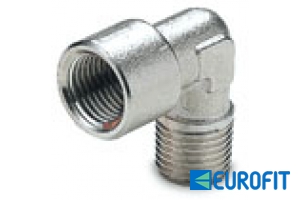

M.F. elbow
M.F. elbow
| Cod. | Ref. | F | F1 | Ch | P | P1 | L | L1 | E | Conf. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E2110000 | 458 | M5 | M5 | 9 | 4.0 | 5.0 | 11.5 | 11.0 | 8.5 | 50 | 0,79 | |
| E2110001 | 458 | 1/8 | 1/8 | 10 | 8.0 | 7.0 | 16.5 | 20.5 | 13.5 | 100 | 0,68 | |
| E2110002 | 458 | 1/4 | 1/4 | 13 | 10.5 | 8.0 | 24.5 | 26.0 | 17.0 | 100 | 1,07 | |
| E2110006 | 458 | 1/4 | 1/8 | 10 | 11.0 | 8.0 | 21.5 | 21.0 | 17.5 | 50 | 0,78 | |
| E2110003 | 458 | 3/8 | 3/8 | 15 | 11.0 | 10.0 | 26.0 | 30.0 | 20.5 | 50 | 1,50 | |
| E2110004 | 458 | 1/2 | 1/2 | 20 | 13.0 | 11.0 | 30.0 | 36.0 | 25.5 | 20 | 2,38 | |
| E2110005 | 458 | 3/4 | 3/4 | 25 | 16.0 | 16.5 | 33.0 | 36.5 | 32.0 | 10 | 3,13 | |
| E2110011 | 458 | 1' | 1' | 30 | 17.0 | 19.0 | 39.0 | 45.0 | 39.0 | 10 | 4,70 |
