Series 300 > 342

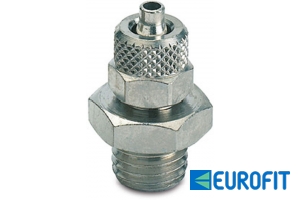

Cylindr. male straight coupling
Cylindr. male straight coupling

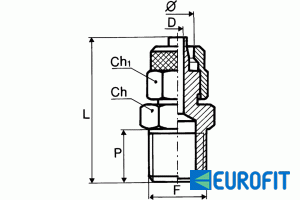

| Cod. | Ref. | -- | F | Ch | Ch1 | P | L | D | Conf. |
|---|---|---|---|---|---|---|---|---|---|
| E2351A01 | 342 | 6/4 | 1/2 | 24 | 10 | 10 | 32 | 10 | |
| E2351020 | 342 | 8/6 | 1/2 | 24 | 12 | 10 | 32 | 10 | |
| E2351A04 | 342 | 5/3 | 1/8 | 14 | 8 | 6 | 23 | 2.0 | 50 |
| E2351A14 | 342 | 6/4 | 1/8 | 14 | 12 | 6 | 25.5 | 3.0 | 50 |
| E2351A07 | 342 | 6/4 | 1/4 | 17 | 12 | 8 | 28 | 3.0 | 50 |
| E2351018 | 342 | 6/4 | 3/8 | 19 | 12 | 9 | 29 | 3.0 | 50 |
| E2351A06 | 342 | 8/6 | 1/8 | 14 | 14 | 6 | 25.5 | 5.0 | 50 |
| E2351021 | 342 | 8/6 | 1/4 | 17 | 14 | 8 | 28 | 5.0 | 50 |
| E2351022 | 342 | 8/6 | 3/8 | 19 | 14 | 9 | 29 | 5.0 | 50 |
| E2351013 | 342 | 10/8 | 1/8 | 14 | 16 | 6 | 27 | 6.8 | 50 |
| E2351023 | 342 | 10/8 | 1/4 | 17 | 16 | 8 | 29.5 | 6.8 | 50 |
| E2351024 | 342 | 10/8 | 1/2 | 24 | 16 | 10 | 32 | 6.8 | 20 |
| E2351A05 | 342 | 12/10 | 3/8 | 19 | 18 | 9 | 32 | 8.5 | 20 |
| E2351025 | 342 | 12/10 | 1/2 | 24 | 18 | 10 | 33.5 | 8.5 | 20 |
| E2351A12 | 342 | 15/12.5 | 1/2 | 24 | 22 | 10 | 35.5 | 10.5 | 20 |
