Series 300 > 346/A/V

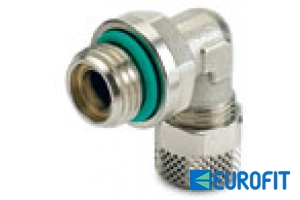

Male rotary elbow with OR Viton®
Male rotary elbow with OR Viton®

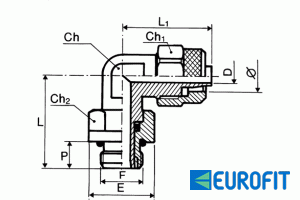

| Cod. | Ref. | Ø | F | Ch | Ch1 | Ch2 | P | E | L | L1 | D | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E2305040V | 346/A/V | 6 | 1/8 | 10 | 12 | 13 | 6 | 15 | 21 | 20.5 | 3 | 10 |
| E2305041V | 346/A/V | 6 | 1/4 | 10 | 12 | 16 | 8 | 18 | 22.5 | 21.5 | 3 | 10 |
| E2305042V | 346/A/V | 8 | 1/8 | 10 | 14 | 13 | 6 | 15 | 21 | 21.0 | 5 | 10 |
| E2305043V | 346/A/V | 8 | 1/4 | 12 | 14 | 16 | 8 | 18 | 24 | 22.0 | 5 | 10 |
| E2305044V | 346/A/V | 10 | 1/4 | 12 | 16 | 16 | 8 | 18 | 24 | 24.0 | 6.8 | 10 |
