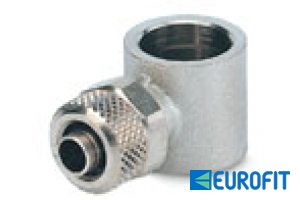

Series 300 > 356
Single ring
Single ring

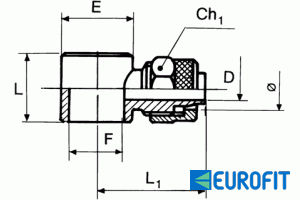

| Cod. | Ref. | Ø | F | Ch1 | L | L1 | D | E | Conf. | |
|---|---|---|---|---|---|---|---|---|---|---|
| E3013002 | 356 | 4/2 | 1/8 | 10 | 15.0 | 26.5 | 1.3 | 9.5 | 10 | |
| E2405000 | 356 | 4/2 | M5 | 9 | 9.0 | 20.5 | 1.5 | 9.5 | 10 | |
| E2405A03 | 356 | 5/3 | M5 | 9 | 9.0 | 20.7 | 2.0 | 9.5 | 10 | |
| E2405A04 | 356 | 5/3 | 1/8 | 9 | 15.0 | 24.3 | 2.0 | 14.0 | 10 | |
| E2405001 | 356 | 6/4 | M5 | 9 | 9.0 | 20.5 | 3.0 | 9.5 | 10 | |
| E2405002 | 356 | 6/4 | 1/8 | 12 | 15.0 | 24.5 | 3.0 | 14.0 | 50 | |
| E2405003 | 356 | 6/4 | 1/4 | 12 | 17.0 | 26.5 | 3.0 | 18.0 | 50 | |
| E2405005 | 356 | 8/6 | 1/8 | 14 | 15.0 | 24.0 | 5.0 | 14.0 | 50 | |
| E2405006 | 356 | 8/6 | 1/4 | 14 | 17.0 | 26.0 | 5.0 | 18.0 | 50 | |
| E2405007 | 356 | 8/6 | 3/8 | 14 | 20.0 | 28.5 | 5.0 | 21.0 | 10 | |
| E2405009 | 356 | 10/8 | 1/4 | 16 | 17.0 | 28.0 | 6.8 | 18.0 | 10 | |
| E2405010 | 356 | 10/8 | 3/8 | 16 | 20.0 | 29.0 | 6.8 | 21.0 | 10 | |
| E2405011 | 356 | 10/8 | 1/2 | 16 | 24.0 | 30.5 | 6.8 | 26.0 | 10 | |
| E2405A10 | 356 | 12/10 | 3/8 | 19 | 20.0 | 31.0 | 8.5 | 21.0 | 10 | |
| E2405012 | 356 | 12/10 | 1/2 | 19 | 24.0 | 33.5 | 8.5 | 26.0 | 10 |
