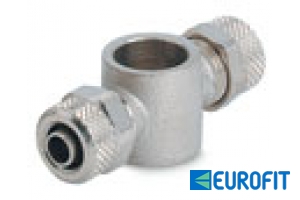

Series 300 > 357
Dual ring
Dual ring

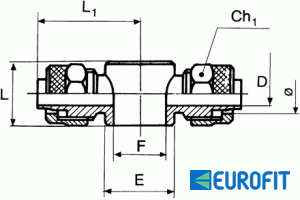

| Cod. | Ref. | Ø | F | Ch1 | L | L1 | D | E | Conf. | |
|---|---|---|---|---|---|---|---|---|---|---|
| E2406A04 | 357 | 5/3 | 1/8 | 9 | 15.0 | 24.5 | 2.0 | 14.0 | 10 | |
| E2406001 | 357 | 6/4 | 1/8 | 12 | 15.0 | 24.5 | 3.0 | 14.0 | 10 | |
| E2406002 | 357 | 6/4 | 1/4 | 12 | 17.0 | 26.5 | 3.0 | 18.0 | 10 | |
| E2406004 | 357 | 8/6 | 1/8 | 14 | 15.0 | 25.0 | 5.0 | 14.0 | 10 | |
| E2406005 | 357 | 8/6 | 1/4 | 14 | 17.0 | 26.0 | 5.0 | 18.0 | 10 | |
| E2406006 | 357 | 8/6 | 3/8 | 14 | 20.0 | 28.5 | 5.0 | 21.0 | 10 | |
| E2406008 | 357 | 10/8 | 1/4 | 16 | 17.0 | 27.5 | 6.8 | 18.0 | 10 | |
| E2406009 | 357 | 10/8 | 3/8 | 16 | 20.0 | 29.0 | 6.8 | 21.0 | 10 | |
| E2406010 | 357 | 10/8 | 1/2 | 16 | 24.0 | 30.5 | 6.8 | 26.0 | 10 | |
| E2406011 | 357 | 12/10 | 1/2 | 19 | 24.0 | 33.5 | 8.5 | 26.0 | 10 |
