Series 300 > 341/GIR

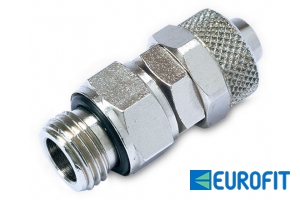

Swivel straight male adaptor cyl. with O-Ring
Swivel straight male adaptor cyl. with O-Ring

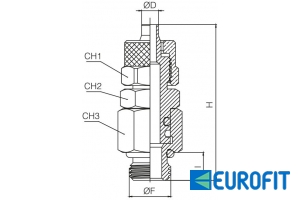

| Cod. | Ref. | D | F | I | H | CH1 | CH2 | CH3 | Conf. |
|---|---|---|---|---|---|---|---|---|---|
| E2350000 | 341/GIR | 6/4 | 1/8 | 6 | 36 | 12 | 12 | 13 | 10 |
| E2350001 | 341/GIR | 6/4 | 1/4 | 8 | 37.5 | 12 | 14 | 16 | 10 |
| E2350002 | 341/GIR | 8/5 | 1/8 | 6 | 36 | 14 | 12 | 13 | 10 |
| E2350003 | 341/GIR | 8/5 | 1/4 | 8 | 37.5 | 14 | 14 | 16 | 10 |
| E2350004 | 341/GIR | 8/6 | 1/8 | 6 | 36 | 14 | 12 | 13 | 10 |
| E2350005 | 341/GIR | 8/6 | 1/4 | 8 | 37.5 | 14 | 14 | 16 | 10 |
| E2350006 | 341/GIR | 10/6.5 | 1/4 | 8 | 39 | 16 | 14 | 16 | 10 |
| E2350007 | 341/GIR | 10/8 | 1/4 | 8 | 39 | 16 | 14 | 16 | 10 |
| E2350008 | 341/GIR | 12/8 | 3/8 | 9 | 42 | 16 | 17 | 19 | 10 |
| E2350009 | 341/GIR | 12/10 | 3/8 | 9 | 42 | 18 | 17 | 19 | 10 |
