Series 200 > 230

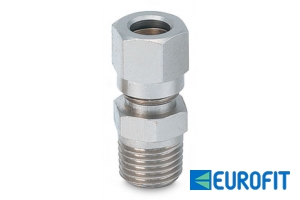

Conical male straight coupling
Conical male straight coupling

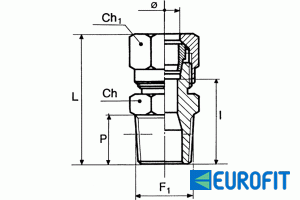

| Cod. | Ref. | Ø | F1 | Ch | Ch1 | P | L | I | Conf. | |
|---|---|---|---|---|---|---|---|---|---|---|
| E2201001 | 230 | 4/2 | 1/8 | 10 | 10 | 8.0 | 27.5 | 16.0 | 50 | |
| E2201002 | 230 | 6/4 | 1/8 | 12 | 12 | 8.0 | 28.0 | 14.5 | 100 | |
| E2201003 | 230 | 6/4 | 1/4 | 14 | 12 | 11.0 | 31.0 | 17.5 | 100 | |
| E2201004 | 230 | 8/6 | 1/8 | 12 | 14 | 8.0 | 30.0 | 16.5 | 100 | |
| E2201005 | 230 | 8/6 | 1/4 | 14 | 14 | 11.0 | 33.0 | 19.5 | 100 | |
| E2201006 | 230 | 8/6 | 3/8 | 17 | 14 | 11.5 | 33.5 | 20.0 | 50 | |
| E2201007 | 230 | 10/8 | 1/4 | 17 | 19 | 11.0 | 38.5 | 20.0 | 50 | |
| E2201008 | 230 | 10/8 | 3/8 | 17 | 19 | 11.5 | 39.0 | 20.5 | 50 | |
| E2201009 | 230 | 10/8 | 1/2 | 22 | 19 | 14.0 | 42.5 | 24.0 | 50 | |
| E2201010 | 230 | 12/10 | 3/8 | 19 | 22 | 11.5 | 38.5 | 20.5 | 50 | |
| E2201011 | 230 | 12/10 | 1/2 | 22 | 22 | 14.0 | 42.0 | 24.0 | 10 | |
| E2201017 | 230 | 14/12 | 1/2 | 22 | 27 | 14.0 | 42.5 | 24.0 | 10 | |
| E2201012 | 230 | 15/12 | 1/2 | 22 | 27 | 14.0 | 43.5 | 25.0 | 10 | |
| E2201014 | 230 | 16/14 | 1/2 | 24 | 30 | 14.0 | 42.0 | 26.0 | 10 | |
| E2201018 | 230 | 18/16 | 1/2 | 26 | 32 | 14.0 | 43.0 | 26.0 | 10 |
