Valvole a sfera e rubinetti a spillo > 498

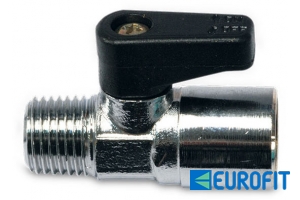

Mini valvola sfera M.F.
Mini valvola sfera M.F.

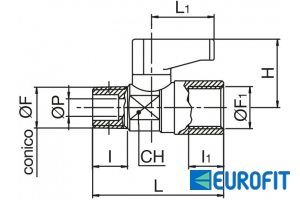

| Cod. | Ref. | F | F1 | P | I | I1 | H | L | L1 | CH | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E4980000 | 498 | 1/8 | 1/8 | 5.5 | 8 | 8 | 21.5 | 35.5 | 19.5 | 14 | 10 |
| E4980001 | 498 | 1/4 | 1/8 | 5.5 | 11 | 8 | 21.5 | 36 | 19.5 | 14 | 10 |
| E4980002 | 498 | 1/4 | 1/4 | 5.5 | 11 | 11 | 21.5 | 41 | 19.5 | 14 | 10 |
| E4980003 | 498 | 3/8 | 1/4 | 5.5 | 11.5 | 11 | 21.5 | 41.5 | 19.5 | 14 | 10 |
| E4980004 | 498 | 3/8 | 3/8 | 8 | 11.5 | 11.5 | 23 | 44.5 | 19.5 | 18 | 10 |
| E4980005 | 498 | 1/2 | 1/2 | 10 | 15 | 15 | 33 | 58 | 26.5 | 22 | 10 |
