Serie 800/W > 801/W

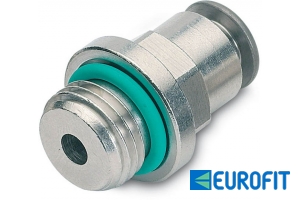

Diritto cilindrico maschio (con OR di tenuta)
Diritto cilindrico maschio (con OR di tenuta)

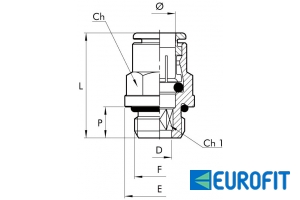

| Cod. | Cod. NSF | Ref. | Ø | F | Ch | Ch1 | P | L | D | E | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E2001001W | 2F01001 | 801/W | 4 | M5 | Ø9.9 | 2.5 | 4 | 21.5 | 2.6 | 9.9 | 10 |
| E2001002W | 2F01002 | 801/W | 4 | 1/8 | 11 | 3 | 6 | 20.5 | 3.1 | 15 | 10 |
| E2001000W | 2F01003 | 801/W | 4 | 1/4 | 12 | 3 | 8 | 22.5 | 3.1 | 18 | 10 |
| E2001106W | 2F01000 | 801/W | 6 | M5 | Ø12.9 | 2.5 | 4 | 25 | 2.6 | 12.9 | 10 |
| E2001007W | 2F01007 | 801/W | 6 | 1/8 | 13 | 4 | 6 | 27.5 | 4.2 | 15 | 10 |
| E2001008W | 2F01008 | 801/W | 6 | 1/4 | 13 | 4 | 8 | 26.5 | 4.2 | 18 | 10 |
| E2001009W | 2F01009 | 801/W | 8 | 1/8 | 14 | 5 | 6 | 28.5 | 5.2 | 15.6 | 10 |
| E2001010W | 2F01010 | 801/W | 8 | 1/4 | 15 | 6 | 8 | 27 | 6.2 | 18 | 10 |
| E2001011W | 2F01011 | 801/W | 8 | 3/8 | 15 | 6 | 9 | 28 | 6.2 | 21 | 10 |
| E2001012W | 2F01012 | 801/W | 10 | 1/4 | 17 | 7 | 8 | 33.5 | 7.2 | 20 | 10 |
| E2001013W | 2F01013 | 801/W | 10 | 3/8 | 17 | 8 | 9 | 30.5 | 8.2 | 21 | 10 |
| E2001019W | 2F01022 | 801/W | 10 | 1/2 | 17 | 10 | 11 | 31.5 | 10.2 | 26 | 10 |
