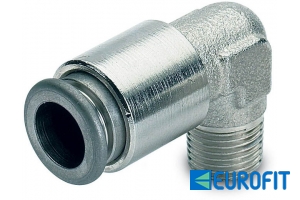

Serie 800/W > 804/W
L conico maschio
L conico maschio

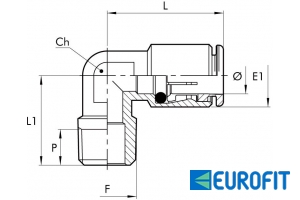

| Cod. | Cod. NSF | Ref. | Ø | F | Ch | E1 | L | L1 | P | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2004002W | 2F39C02 | 804/W | 4 | 1/8 | 10 | 9.5 | 21 | 16 | 6.2 | 10 |
| E2004007W | 2F39C08 | 804/W | 6 | 1/8 | 10 | 11.8 | 23.5 | 16 | 6.2 | 10 |
| E2004008W | 2F39C09 | 804/W | 6 | 1/4 | 10 | 11.8 | 24 | 18.5 | 8.5 | 10 |
| E2004009W | 2F39C10 | 804/W | 8 | 1/8 | 12 | 14 | 26 | 17 | 6.2 | 10 |
| E2004010W | 2F39C11 | 804/W | 8 | 1/4 | 12 | 14 | 26 | 20 | 8.5 | 10 |
| E2004013W | 2F39C12 | 804/W | 8 | 3/8 | 14 | 14 | 27.5 | 22.5 | 9 | 10 |
| E2004014W | 2F39C13 | 804/W | 10 | 1/4 | 14 | 17 | 30.5 | 22 | 8.5 | 10 |
