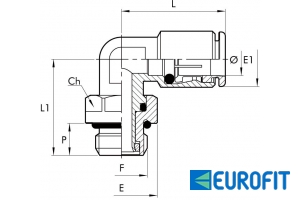

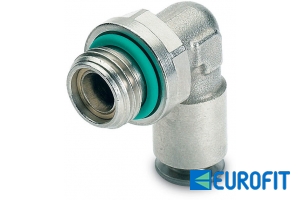

Serie 800/W > 806/W
L maschio girevole (con OR di tenuta)
L maschio girevole (con OR di tenuta)
| Cod. | Cod. NSF | Ref. | Ø | F | Ch | E | E1 | L | L1 | P | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E2006001W | 2F31001 | 806/W | 4 | M5 | 9 | 9 | 10 | 21 | 19 | 4 | 10 |
| E2006002W | 2F31002 | 806/W | 4 | 1/8 | 13 | 15 | 10 | 21 | 21 | 6 | 10 |
| E2006000W | 2F31003 | 806/W | 4 | 1/4 | 16 | 18 | 10 | 21 | 25 | 8 | 10 |
| E2006003W | 2F31007 | 806/W | 6 | M5 | 9 | 8 | 11.8 | 24 | 17.5 | 4 | 10 |
| E2006007W | 2F31008 | 806/W | 6 | 1/8 | 13 | 15 | 12.5 | 24 | 21 | 6 | 10 |
| E2006008W | 2F31009 | 806/W | 6 | 1/4 | 16 | 18 | 12.5 | 25.5 | 25 | 8 | 10 |
| E2006009W | 2F31010 | 806/W | 8 | 1/8 | 13 | 15 | 14 | 26 | 22.5 | 6 | 10 |
| E2006010W | 2F31011 | 806/W | 8 | 1/4 | 16 | 18 | 14 | 26 | 25 | 8 | 10 |
| E2006011W | 2F31012 | 806/W | 8 | 3/8 | 19 | 22 | 14 | 27.5 | 30.5 | 9 | 10 |
| E2006012W | 2F31013 | 806/W | 10 | 1/4 | 16 | 18 | 16.5 | 30 | 27 | 8 | 10 |
| E2006013W | 2F31014 | 806/W | 10 | 3/8 | 19 | 22 | 16.5 | 30 | 30.5 | 9 | 10 |
| E2006018W | 2F31015 | 806/W | 10 | 1/2 | 22 | 26 | 16.5 | 31 | 32 | 11 | 10 |
