Serie 700 > 757

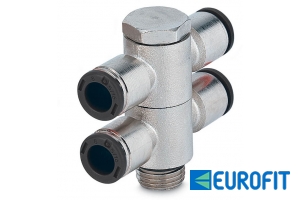

Asta doppia maschio anelli doppi orientabili
Asta doppia maschio anelli doppi orientabili

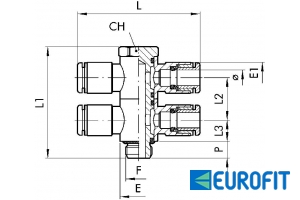

| Cod. | Ref. | Ø | F | Ch | E | E1 | L | L1 | L2 | L3 | P | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E2L57001 | 757 | 4 | M5 | 9 | 9.5 | 9.5 | 40.4 | 30.2 | 11.5 | 5.8 | 4.5 | 10 |
| E2L57002 | 757 | 4 | 1/8 | 13 | 14 | 9.5 | 42.6 | 41 | 15.5 | 7.8 | 6 | 10 |
| E2L57007 | 757 | 6 | M5 | 9 | 9.5 | 11.3 | 47 | 30.2 | 11.5 | 5.8 | 4.5 | 10 |
| E2L57008 | 757 | 6 | 1/8 | 13 | 14 | 11.5 | 46 | 41 | 15.5 | 7.8 | 6 | 10 |
| E2L57009 | 757 | 6 | 1/4 | 16 | 18 | 11.5 | 49 | 46.4 | 17.2 | 8.6 | 8 | 10 |
| E2L57010 | 757 | 8 | 1/8 | 13 | 14 | 13.8 | 49.6 | 41 | 15.5 | 7.8 | 6 | 10 |
| E2L57011 | 757 | 8 | 1/4 | 16 | 18 | 13.8 | 53 | 46.4 | 17.2 | 8.6 | 8 | 10 |
| E2L57012 | 757 | 8 | 3/8 | 20 | 21 | 13.8 | 57 | 56.8 | 21.4 | 10.7 | 9 | 10 |
| E2L57013 | 757 | 10 | 1/4 | 16 | 18 | 16.5 | 62.8 | 46.4 | 17.2 | 8.6 | 8 | 10 |
| E2L57014 | 757 | 10 | 3/8 | 20 | 21 | 16 | 65.6 | 56.8 | 21.4 | 10.7 | 9 | 10 |
| E2L57016 | 757 | 12 | 3/8 | 20 | 21 | 19.5 | 70.6 | 56.8 | 21.4 | 10.7 | 9 | 10 |
| E2L57017 | 757 | 12 | 1/2 | 25 | 26 | 19.5 | 74 | 64 | 24 | 12 | 11 | 10 |
