Serie 700 > 717/T

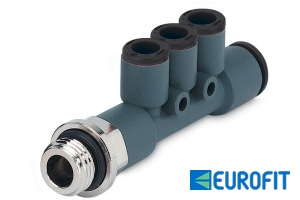

T multiplo maschio
T multiplo maschio

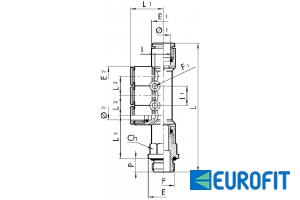

| Cod. | Ref. | F | Ø1 | Ø2 | E1 | E2 | E | Ch | P | L | L1 | L2 | L3 | I | I1 | F1 | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E2L45001 | 717/T | 1/8 | 6 | 4 | 11.3 | 9.2 | 14 | 12 | 6 | 63.5 | 17.2 | 9.4 | 21.5 | 4.3 | 9.4 | 3.3 | 10 |
| E2L45002 | 717/T | 1/4 | 6 | 4 | 11.3 | 9.2 | 18 | 14 | 8 | 66.5 | 17.2 | 9.4 | 22.5 | 4.3 | 9.4 | 3.3 | 10 |
| E2L45007 | 717/T | 1/8 | 8 | 6 | 14 | 11.3 | 15 | 14 | 6 | 71.2 | 19.6 | 11.5 | 23 | 5 | 11.5 | 3.3 | 10 |
| E2L45008 | 717/T | 1/4 | 8 | 6 | 14 | 11.3 | 18 | 14 | 8 | 75.6 | 19.6 | 11.5 | 25.4 | 5 | 11.5 | 3.3 | 10 |
| E2L45009 | 717/T | 3/8 | 8 | 6 | 14 | 11.3 | 22 | 17 | 9 | 77.2 | 19.6 | 11.5 | 26 | 5 | 11.5 | 3.3 | 10 |
