Serie 700 > 715

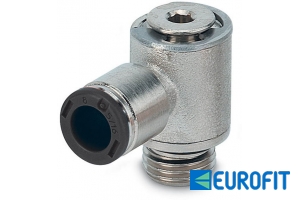

Asta maschio anello singolo girevole
Asta maschio anello singolo girevole

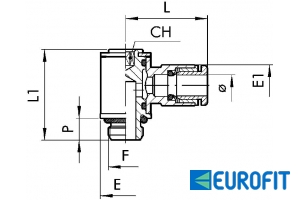

| Cod. | Ref. | Ø | F | Ch | P | L | L1 | E | E1 | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2L14003 | 715 | 3 | M3 | 1.5 | 3 | 12.2 | 13.2 | 5.8 | 5.8 | 10 |
| E2L14004 | 715 | 3 | M5 | 2 | 3.5 | 12.7 | 13.7 | 5.8 | 7 | 10 |
| E2L14001 | 715 | 4 | M5 | 2 | 4 | 20.2 | 18.4 | 9.5 | 9.5 | 10 |
| E2L14011 | 715 | 4 | M7 | 3 | 5 | 20.2 | 18.5 | 9.8 | 9.5 | 10 |
| E2L14002 | 715 | 4 | 1/8 | 3 | 6 | 21.3 | 24.9 | 14 | 9.5 | 10 |
| E2023004 | 715 | 5 | M5 | 2 | 4 | 24 | 19 | 9.9 | 12 | 10 |
| E2023005 | 715 | 5 | 1/8 | 3 | 6 | 25 | 27 | 14 | 12 | 10 |
| E2L14106 | 715 | 6 | M5 | 2 | 4 | 23.5 | 18.4 | 9.5 | 11.3 | 10 |
| E2L14012 | 715 | 6 | M7 | 3 | 5 | 23.5 | 18.5 | 9.8 | 11.3 | 10 |
| E2L14005 | 715 | 6 | 1/8 | 3 | 6 | 23 | 24.9 | 14 | 11.5 | 10 |
| E2L14007 | 715 | 6 | 1/4 | 4 | 8 | 24.5 | 29.4 | 18 | 11.5 | 10 |
| E2L14006 | 715 | 8 | 1/8 | 3 | 6 | 24.8 | 24.9 | 14 | 13.8 | 10 |
| E2L14008 | 715 | 8 | 1/4 | 4 | 8 | 26.5 | 29.4 | 18 | 13.8 | 10 |
| E2L14013 | 715 | 8 | 3/8 | 5 | 9 | 28.5 | 35.6 | 22 | 13.8 | 10 |
| E2L14009 | 715 | 10 | 1/4 | 4 | 8 | 31.4 | 29.4 | 18 | 16.5 | 10 |
| E2L14010 | 715 | 10 | 3/8 | 5 | 9 | 32.8 | 35.6 | 22 | 16 | 10 |
| E2L14014 | 715 | 12 | 1/4 | 4 | 8 | 33 | 29.4 | 18 | 19.5 | 10 |
| E2L14015 | 715 | 12 | 3/8 | 5 | 9 | 35.3 | 35.6 | 22 | 19.5 | 10 |
| E2L14016 | 715 | 12 | 1/2 | 8 | 11 | 37 | 40.8 | 26 | 19.5 | 10 |
