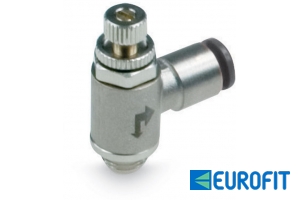

MRF a regolazione manuale

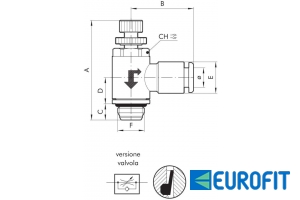

Cod. | Ref. | F | Ø | CH | A min | A max | B | C | D | E | Conf. |
---|---|---|---|---|---|---|---|---|---|---|---|
E9031201 | 606 | M5 | 4 | 9 | 27.7 | 31 | 20.2 | 4 | 4 | 9.2 | 9.2 |
E9031202 | 606 | 1/8 | 4 | 12 | 33.5 | 37.6 | 21.3 | 6 | 9.8 | 9.5 | 9.5 |
E9031203 | 606 | M5 | 5 | 9 | 27.7 | 31 | 23.8 | 4 | 9.2 | 12 | 12 |
E9031204 | 606 | 1/8 | 5 | 12 | 33.5 | 37.6 | 24.8 | 6 | 9.8 | 12 | 12 |
E9031205 | 606 | M5 | 6 | 9 | 27.7 | 31 | 23.5 | 4 | 9.2 | 11.3 | 11.3 |
E9031206 | 606 | 1/8 | 6 | 12 | 33.5 | 37.6 | 23 | 6 | 9.8 | 11.5 | 11.5 |
E9031207 | 606 | 1/4 | 6 | 15 | 38.8 | 43.7 | 24.5 | 8 | 11.1 | 11.5 | 11.5 |
E9031208 | 606 | 1/8 | 8 | 12 | 33.5 | 37.6 | 24.8 | 6 | 9.8 | 13.8 | 13.8 |
E9031209 | 606 | 1/4 | 8 | 15 | 38.8 | 43.7 | 26.5 | 8 | 11.1 | 13.8 | 13.8 |
E9031211 | 606 | 1/4 | 10 | 15 | 38.8 | 43.7 | 31.4 | 8 | 11.1 | 16.5 | 16.5 |
E9031212 | 606 | 3/8 | 10 | 19 | 47.2 | 52 | 32.8 | 9 | 13.4 | 16 | 16 |
E9031214 | 606 | 1/4 | 12 | 15 | 38.8 | 43.7 | 33 | 8 | 11.1 | 19.5 | 19.5 |
E9031215 | 606 | 3/8 | 12 | 19 | 47.2 | 52 | 35.3 | 9 | 13.4 | 19.5 | 19.5 |
E9031216 | 606 | 1/2 | 12 | 22 | 53 | 59.8 | 37 | 11 | 15.9 | 19.5 | 19.5 |
