Serie 600 > 617

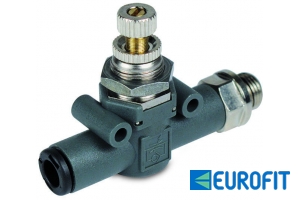

MRF tubo-filetto unidirezionale versione valvola
MRF tubo-filetto unidirezionale versione valvola

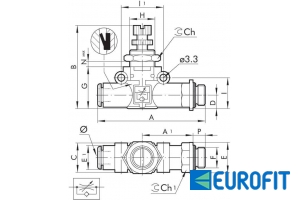

| Cod. | Ref. | Ø | F | P | A | A1 | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|---|
| E9041501 | 617 | 4 | M5 | 4 | 47.7 | 22.7 | 33.5÷36.5 | 10.7 | 5.6 | 9.9 |
| E9041502 | 617 | 4 | 1/8 | 6 | 51.6 | 24.6 | 33.5÷36.5 | 10.7 | 5.6 | 14 |
| E9041508 | 617 | 6 | 1/8 | 6 | 58.5 | 27.8 | 36÷41 | 14.7 | 6.4 | 14 |
| E9041509 | 617 | 6 | 1/4 | 8 | 61.5 | 28.8 | 36÷41 | 14.7 | 6.4 | 18 |
| E9041510 | 617 | 8 | 1/8 | 6 | 66.2 | 31.8 | 44÷49 | 18.7 | 9.1 | 15 |
| E9041511 | 617 | 8 | 1/4 | 8 | 70.6 | 34.2 | 44÷49 | 18.7 | 9.1 | 18 |
| E9041512 | 617 | 8 | 3/8 | 9 | 72.2 | 34.8 | 44÷49 | 18.7 | 9.1 | 22 |
| Cod. | Ref. | E1 | G | H | I | I1. | Ch | Ch1 | Conf. |
|---|---|---|---|---|---|---|---|---|---|
| E9041501 | 617 | 10 | 17.5 | M9x0.75 | 12.8 | 16 | 11 | 9 | 10 |
| E9041502 | 617 | 10 | 17.5 | M9x0.75 | 12.8 | 16 | 11 | 12 | 10 |
| E9041508 | 617 | 11.4 | 20 | M12x0.75 | 14.6 | 20 | 15 | 12 | 10 |
| E9041509 | 617 | 11.4 | 20 | M12x0.75 | 14.6 | 20 | 15 | 14 | 10 |
| E9041510 | 617 | 13.8 | 26 | M15x1 | 18.7 | 24 | 20 | 14 | 10 |
| E9041511 | 617 | 13.8 | 26 | M15x1 | 18.7 | 24 | 20 | 17 | 10 |
| E9041512 | 617 | 13.8 | 26 | M15x1 | 18.7 | 24 | 20 | 17 | 10 |
