Serie 300 > 341/V

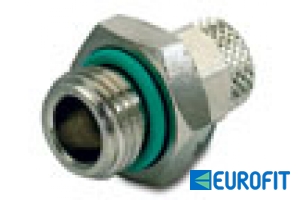

Diritto maschio cilindrico con OR di tenuta in Viton®
Diritto maschio cilindrico con OR di tenuta in Viton®

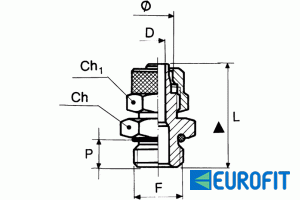

| Cod. | Ref. | Ø | F | Ch | Ch1 | P | L | D | O ring | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|
| E2351003V | 341/V | 6 | 1/8 | 13 | 12 | 6.0 | 25.0 | 3.0 | 2031 | 10 |
| E2351004V | 341/V | 6 | 1/4 | 16 | 12 | 8.0 | 27.0 | 3.0 | 2043 | 10 |
| E2351005V | 341/V | 8 | 1/8 | 14 | 14 | 6.0 | 25.0 | 5.0 | 2031 | 10 |
| E2351006V | 341/V | 8 | 1/4 | 16 | 14 | 8.0 | 27.0 | 5.0 | 2043 | 10 |
| E2351008V | 341/V | 10 | 1/4 | 16 | 16 | 8.0 | 29.0 | 6.8 | 2043 | 10 |
